TOOL BALANCERS

Description

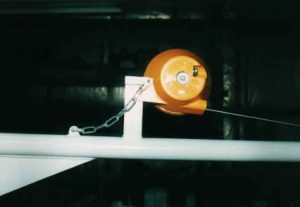

Vale heavy duty balancers feature smooth, even tension through the entire range of cable travel, simple external tension adjustment, and safe to handle cartridge type main spring for ease of replacement without danger to the maintenance personnel. Changing tools and cables at the “job site” is both safe and simple with the Vale manual drum lock, standard on all models. Each balancer is equipped with a simple and sure safety lock which prevents the load from dropping should the main spring lose tension. All models are constructed of high tensile aluminum for ease of handling and are permanently lubricated at the factory, assuring years of trouble free satisfaction.

To download a Balancer Specification Sheet “Click Here“

Model	Capacity Lbs.	Capacity Kg.	Travel Ft.	Travel Meters	Weight Lbs.	Weight Kg.
V20J-A1529	15-25	6-11	7	2.1	28	13
V30J-A1530	25-35	11-16	7	2.1	28	13
V60J-A1531	55-70	24-32	7	2.1	29	13
V90J-A1620	80-90	36-41	7	2.1	29	13
V130K-A1649	125-135	57-61	7	2.1	48	22
V150K-A1533	145-155	65-70	7	2.1	49	22
V250L-A1535	235-250	106-113	7	2.1	79	35
V280L-A1909	265-280	120-127	7	2.1	79	35
