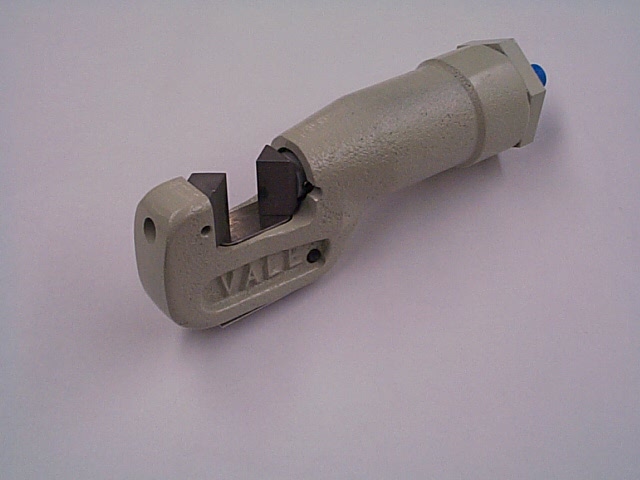

Hydraulic Rod & Bar Shears
Call for Price
Description
Here are the 8 features that make Vale Shears the standard for the industry:
- Mill-type BOLTED CAP CONSTRUCTION for easy maintenance.
- SUPER SEALING, with only TEFLON parts touching the cylinder bore.
- BRONZE-FILLED TEFLON WEAR RING prevents piston from touching cylinder bore.
- ALL STEEL SUSPENSION RING for maximum safety.
- AXIAL RAM GUIDE KEY for more accurate blade cuts.
- SINGLE SPRING CONSTRUCTION for longer life.
- HIGH STRENGTH BRONZE RAM BUSHING.
- ALLOY STEEL HEAT-TREATED and HARD PLATED single piece ram and piston for simplicity and accuracy. Requires one less seal
Vale gives you even more:
- TWIST LOCK electrical connector with BOOT PROTECTOR.
- HEAVY DUTY trigger type switch,15 AMP rated.
- HIGH STRENGTH ALUMINUM switch handle with integral trigger guard for greater safety.
- Heavy-walled cylinder, 4,500PSI working pressure with 4 to 1 SAFETY FACTOR.
- HIGH STRENGTH ALLOY heat treated “C” frame.
| MODEL | CAPACITY DIA. | SHEAR STRENGTH PSI @ | BLADE # | WEIGHT L.B. | DIM A In” | DIM B In” | DIM C In” | DIM D In” | DIM E In” |
|---|---|---|---|---|---|---|---|---|---|
| V10-C1539 | 0.62 | 60,000 | A-1502 | 17.0 | 9.96 | 3.0 | 2.68 | 0.75 | 1.19 |
| V15-D1507 | 0.81 | 60,000 | A-1502 | 23.0 | 10.52 | 3.93 | 2.68 | 0.88 | 1.19 |
| V35-D1508 | 1.25 | 55,000 | A-1502 | 50.0 | 12.62 | 5.68 | 3.07 | 1.33 | 1.19 |
| V70-D1509 | 1.62 | 60,000 | A-1503 | 121.0 | 16.41 | 7.75 | 4.88 | 1.81 | 1.75 |
| V90-D1570 | 2.00 | 60,000 | A-1501 | 268.0 | 24.00 | 9.00 | 7.25 | 2.25 | 2.25 |
| V135-D1708 | 2.50 | 60,000 | A-3716 | 600.0 | 31.00 | 12.38 | 10.00 | 2.75 | 2.75 |
| V250-D1510 | 1.81 | 20,000 | A-1731 | 75.0 | 18.75 | 5.18 | 4.62 | 2.62 | 2.25 |
| V350-D1511 | 2.50 | 20,000 | A-1505 | 131.0 | 24.00 | 5.68 | 6.12 | 3.50 | 2.75 |
| V700-D1512 | 3.00 | 20,000 | A-1506 | 269.0 | 30.76 | 7.75 | 7.50 | 4.50 | 3.50 |
| V900-D1600 | 3.50 | 20,000 | A-1920 | 454.0 | 37.47 | 9.00 | 9.75 | 5.50 | 5.00 |
